Table idempiere9.adempiere.asp_window
ASP Window

Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
ad_window_id numeric 10
ad_window.ad_window_id adwindow_aspwindow R
Data entry or display window
asp_level_id numeric 10
asp_level.asp_level_id asplevel_aspwindow R
ASP Level
asp_status bpchar 1 'U'::bpchar ASP Status
created timestamp 29,6 statement_timestamp() Date this record was created
createdby numeric 10 User who created this records
isactive bpchar 1 'Y'::bpchar The record is active in the system
updated timestamp 29,6 statement_timestamp() Date this record was updated
updatedby numeric 10 User who updated this records
asp_window_id numeric 10
asp_tab.asp_window_id aspwindow_asptab R
ASP Window
asp_window_uu varchar 36  √  NULL::character varying ASP_Window_UU

Table contained 0 rows at 2021-12-25 14:57 +0100

Indexes:
Column(s) Type Sort Constraint Name
asp_window_id Primary key Asc asp_window_key
asp_level_id + ad_window_id Must be unique Asc/Asc asp_window_unq
asp_window_uu Must be unique Asc asp_window_uu_idx

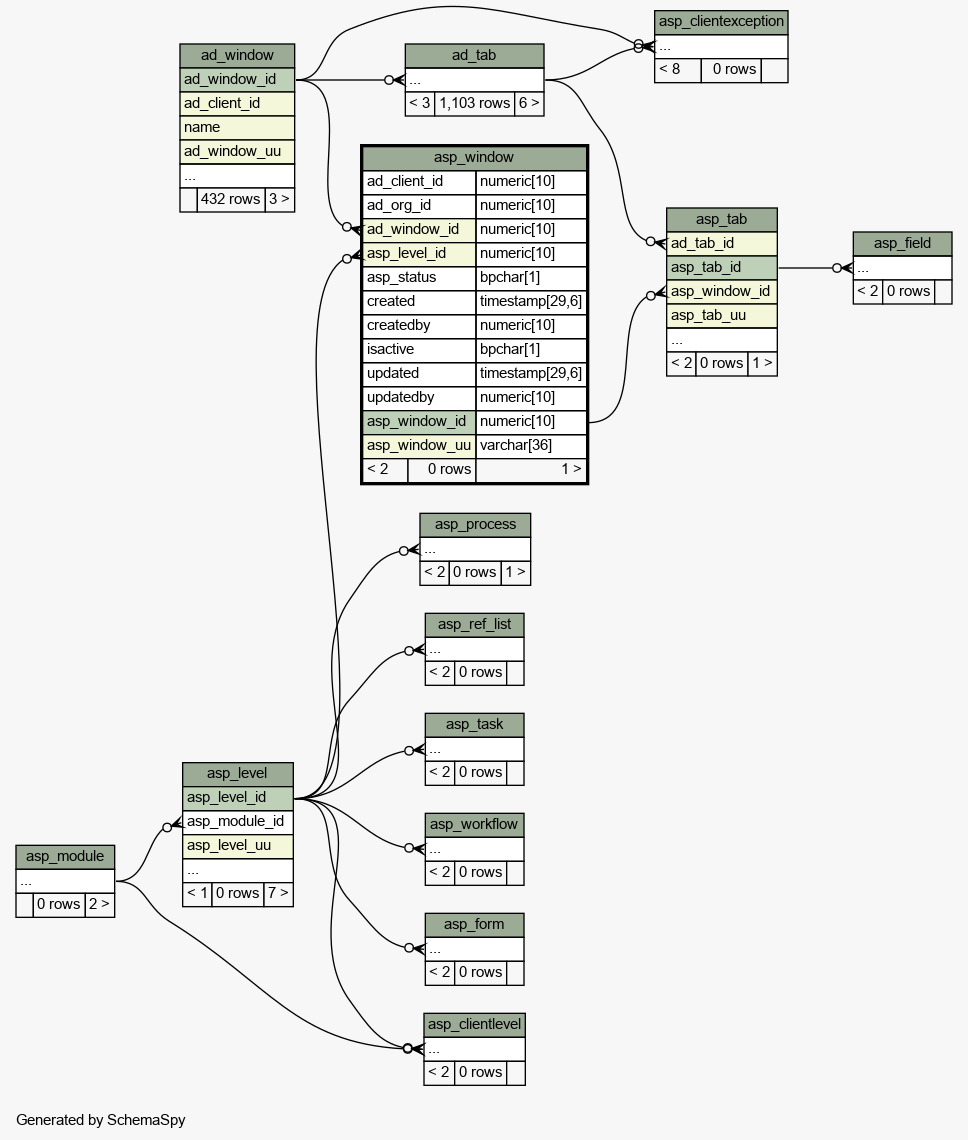

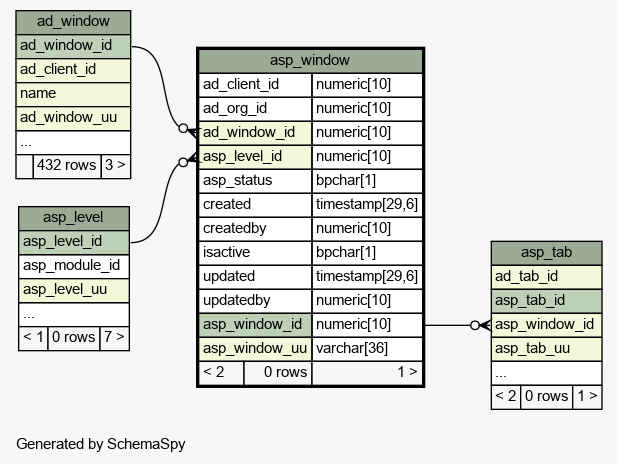

Close relationships  within of separation:
