Table idempiere9.adempiere.ad_task
Operation System Task

Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_task_id numeric 10
asp_clientexception.ad_task_id adtask_aspclientexception R
asp_task.ad_task_id adtask_asptask R
Operation System Task
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
name varchar 60 Alphanumeric identifier of the entity
description varchar 255  √  null Optional short description of the record
help varchar 2000  √  null Comment or Hint
accesslevel bpchar 1 Access Level required
os_command varchar 2000 Operating System Command
entitytype varchar 40 'D'::character varying Dictionary Entity Type; Determines ownership and synchronization
isserverprocess bpchar 1  √  'N'::bpchar Run this Process on Server only
ad_task_uu varchar 36  √  NULL::character varying AD_Task_UU
ad_ctxhelp_id numeric 10  √  NULL::numeric Context Help

Table contained 3 rows at 2021-12-25 14:57 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_task_id Primary key Asc ad_task_pkey
ad_client_id + name Must be unique Asc/Asc ad_task_name
ad_task_uu Must be unique Asc ad_task_uu_idx

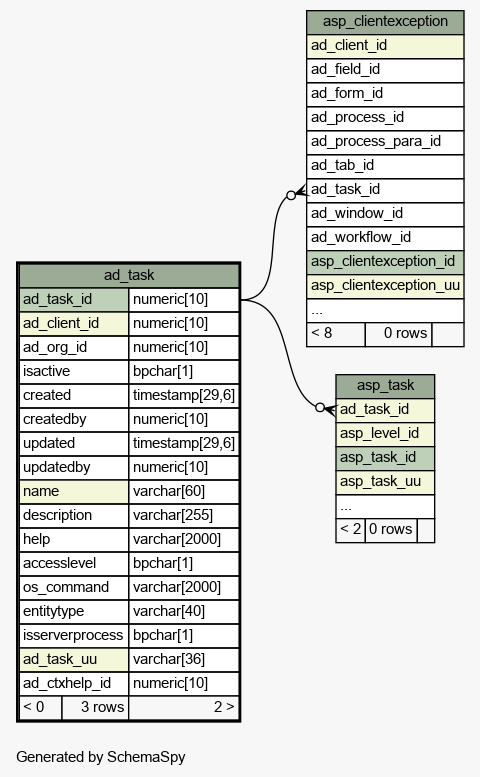

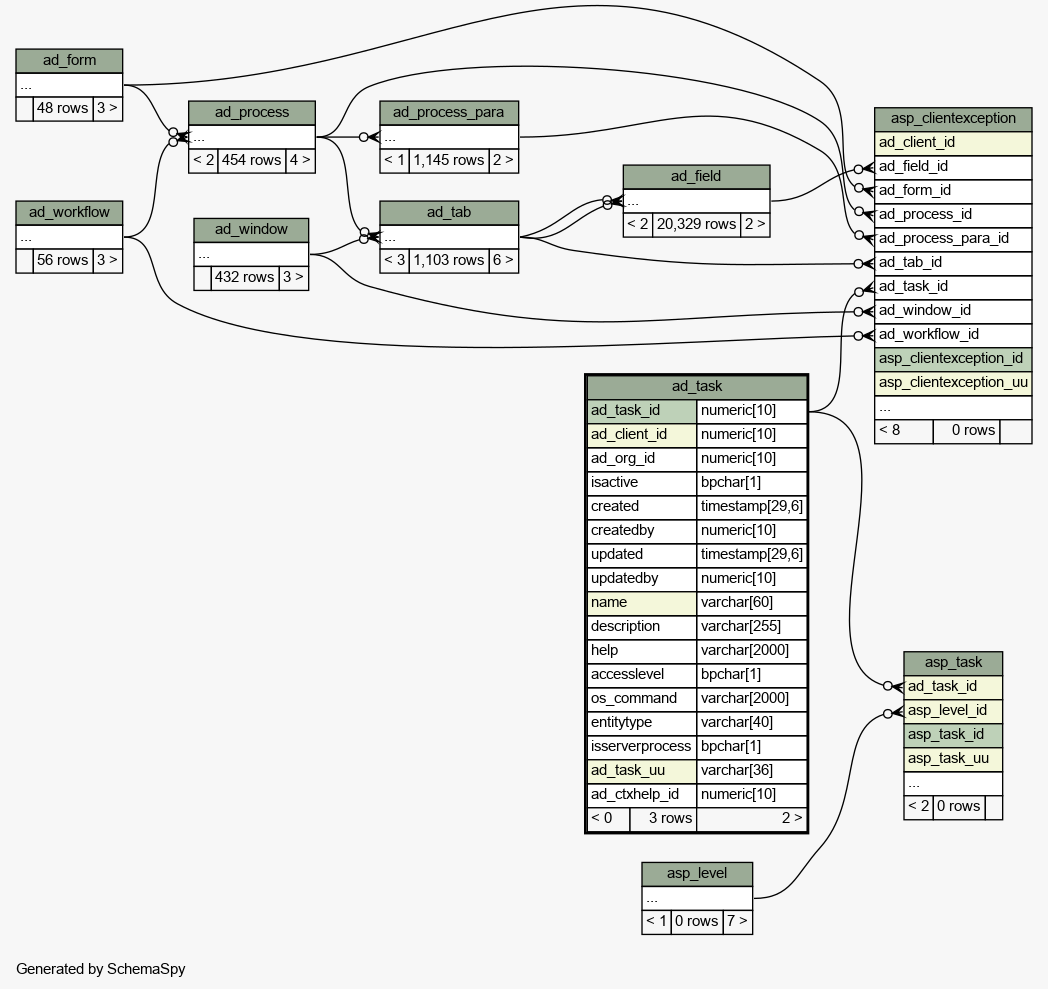

Close relationships  within of separation:
