Table idempiere9.adempiere.m_rma
Return Material Authorization

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
m_rma_id numeric 10
m_inout.m_rma_id mrma_minout R
m_rma.ref_rma_id refrma_mrma R
r_request.m_rma_id mrma_rrequest R
r_requestaction.m_rma_id mrma_rrequestaction R
Return Material Authorization
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
documentno varchar 30 Document sequence number of the document
name varchar 60 Alphanumeric identifier of the entity
description varchar 255  √  null Optional short description of the record
inout_id numeric 10
m_inout.m_inout_id minout_mrma R
MaterialShipment Document
processing bpchar 1  √  null Process Now
processed bpchar 1 'N'::bpchar The document has been processed
c_order_id numeric 10  √  null Order
c_doctype_id numeric 10 Document type or rules
salesrep_id numeric 10
ad_user.ad_user_id salesrep_mrma R
Sales Representative or Company Agent
docaction bpchar 2 The targeted status of the document
docstatus bpchar 2 The current status of the document
isapproved bpchar 1 'N'::bpchar Indicates if this document requires approval
amt numeric 0  √  null Amount
m_rmatype_id numeric 10  √  null Return Material Authorization Type
help varchar 2000  √  null Comment or Hint
c_currency_id numeric 10  √  null The Currency for this record
c_bpartner_id numeric 10  √  null
c_bpartner.c_bpartner_id cbpartner_mrma R
Identifies a Business Partner
issotrx bpchar 1 'Y'::bpchar This is a Sales Transaction
generateto bpchar 1  √  null Generate To
ref_rma_id numeric 10  √  NULL::numeric
m_rma.m_rma_id refrma_mrma R
Referenced RMA
m_rma_uu varchar 36  √  NULL::character varying M_RMA_UU
createfrom bpchar 1  √  NULL::bpchar Process which will generate a new document lines based on an existing document

Table contained 1 rows at 2021-12-25 14:55 +0100

Indexes:
Column(s) Type Sort Constraint Name
m_rma_id Primary key Asc m_rma_pkey
m_rma_uu Must be unique Asc m_rma_uu_idx

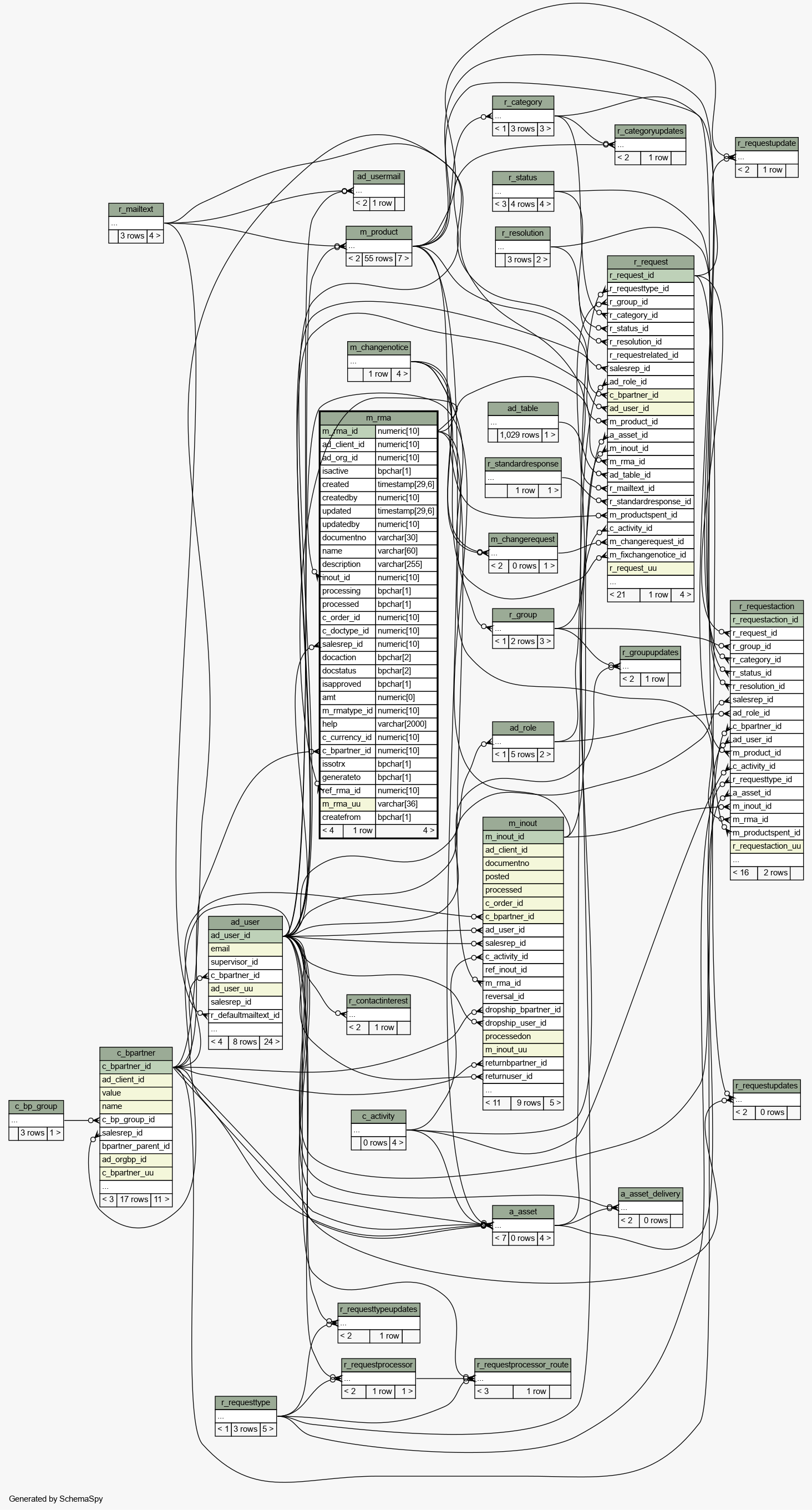

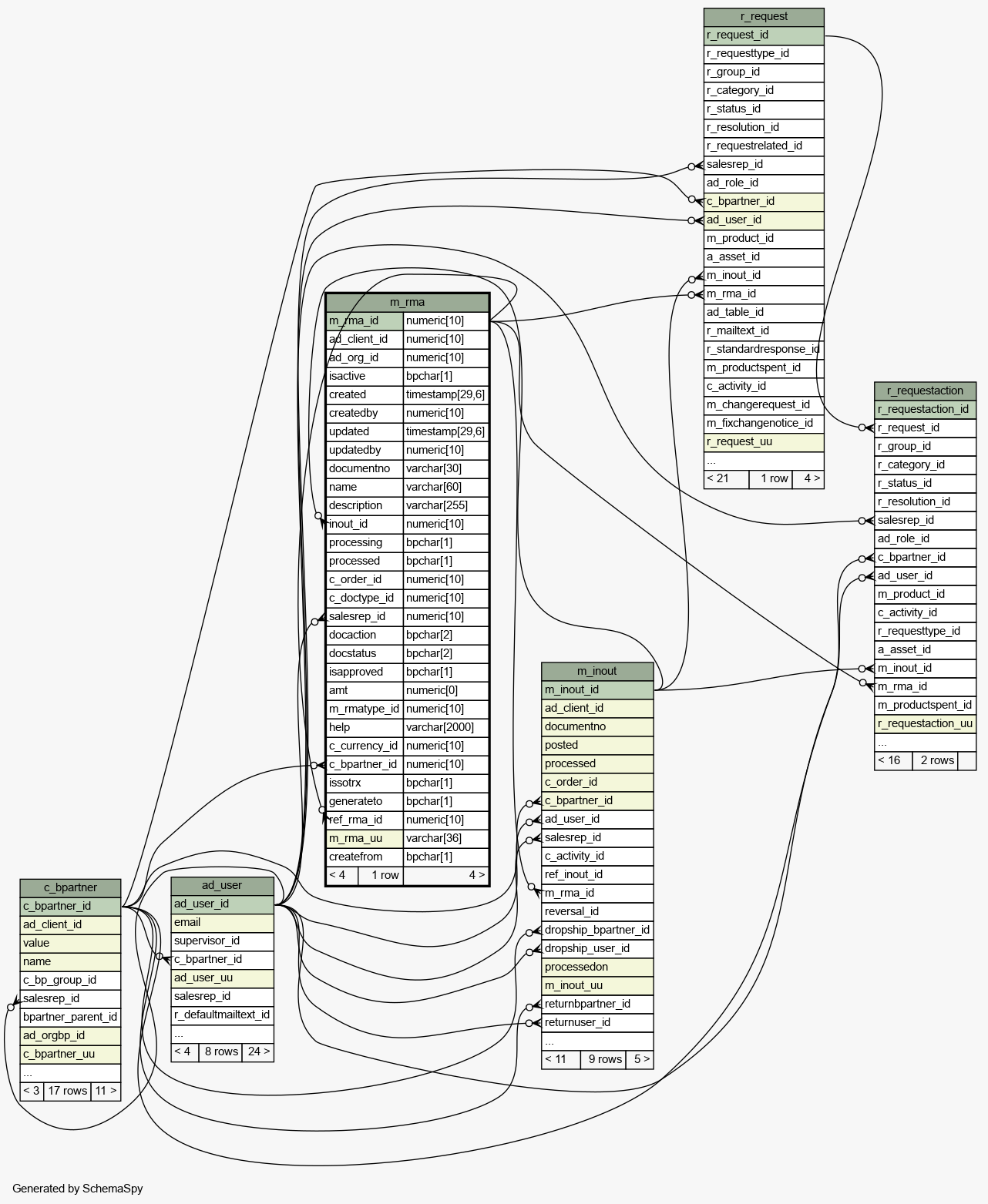

Close relationships  within of separation:
