Table idempiere9.adempiere.w_advertisement
Web Advertisement

Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
w_advertisement_id numeric 10 Web Advertisement
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
name varchar 60 Alphanumeric identifier of the entity
description varchar 255  √  null Optional short description of the record
help varchar 2000  √  null Comment or Hint
isselfservice bpchar 1 'N'::bpchar This is a Self-Service entry or this entry can be changed via Self-Service
c_bpartner_id numeric 10
c_bpartner.c_bpartner_id cbpartner_wadvertisement R
Identifies a Business Partner
ad_user_id numeric 10  √  null
ad_user.ad_user_id aduser_wadvertisement R
User within the system - Internal or Business Partner Contact
w_clickcount_id numeric 10  √  null
w_clickcount.w_clickcount_id wclickcount_wadvertisement R
Web Click Management
w_countercount_id numeric 10  √  null
w_countercount.w_countercount_id wcountercount_wadvertisement R
Web Counter Count Management
validfrom timestamp 29,6  √  null Valid from including this date (first day)
validto timestamp 29,6  √  null Valid to including this date (last day)
imageurl varchar 120  √  null URL of image
adtext varchar 2000  √  null Text of the Advertisement
webparam1 varchar 2000  √  null Web Site Parameter 1 (default: header image)
webparam2 varchar 2000  √  null Web Site Parameter 2 (default index page)
webparam3 varchar 2000  √  null Web Site Parameter 3 (default left - menu)
webparam4 varchar 2000  √  null Web Site Parameter 4 (default footer left)
publishstatus bpchar 1 Status of Publication
version numeric 10  √  null Version of the table definition
processing bpchar 1  √  null Process Now
w_advertisement_uu varchar 36  √  NULL::character varying W_Advertisement_UU

Table contained 1 rows at 2021-12-25 14:57 +0100

Indexes:
Column(s) Type Sort Constraint Name
w_advertisement_id Primary key Asc w_advertisement_pkey
w_advertisement_uu Must be unique Asc w_advertisement_uu_idx

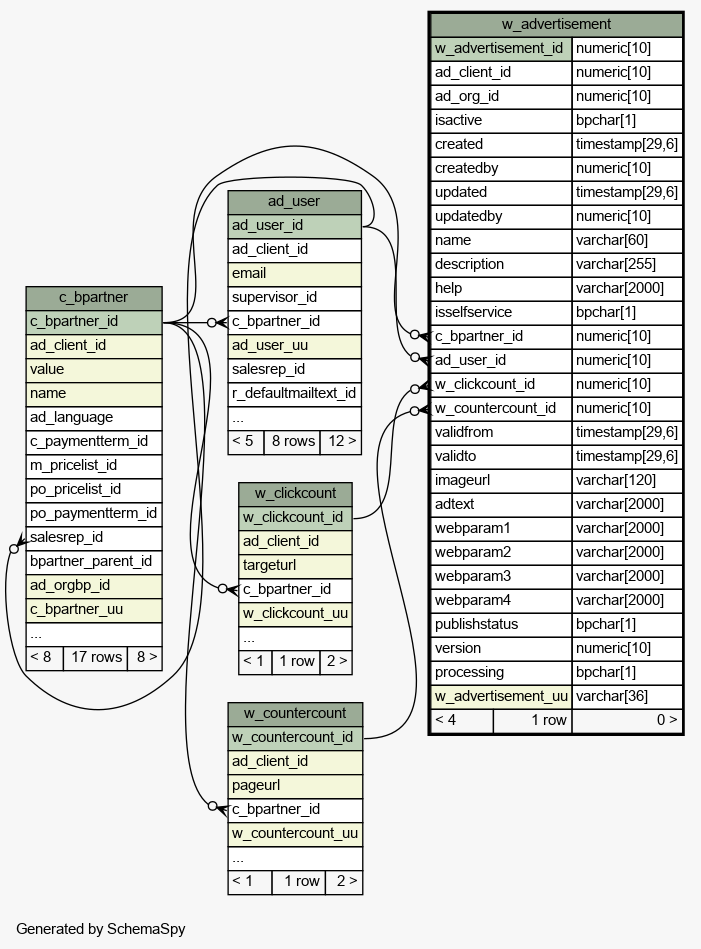

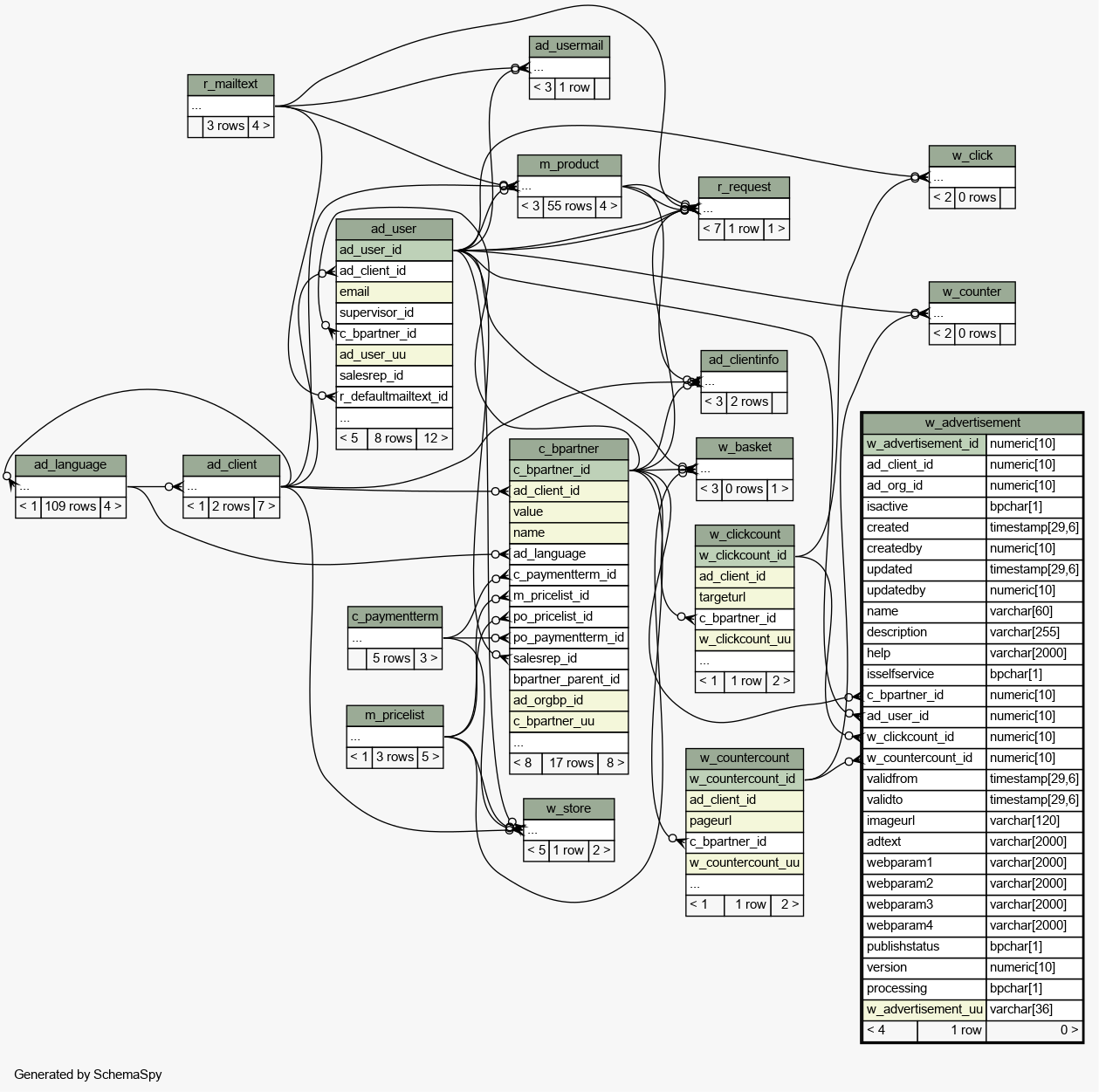

Close relationships  within of separation:
