Table idempiere9.adempiere.ad_treenodebp
Tree Node BP

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_tree_id numeric 10
ad_tree.ad_tree_id adtree_adtreenodebp C
Identifies a Tree
node_id numeric 10 Node
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
parent_id numeric 10  √  null Parent of Entity
seqno numeric 10  √  null Method of ordering records; lowest number comes first
ad_treenodebp_uu varchar 36  √  NULL::character varying AD_TreeNodeBP_UU

Table contained 17 rows at 2021-12-25 14:56 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_tree_id + node_id Primary key Asc/Asc ad_treenodebp_pkey
parent_id Performance Asc ad_treenodebp_parent
ad_treenodebp_uu Must be unique Asc ad_treenodebp_uu_idx

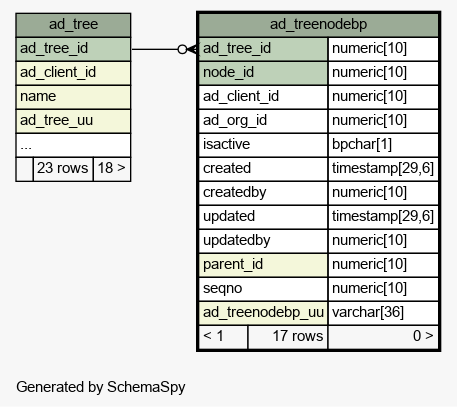

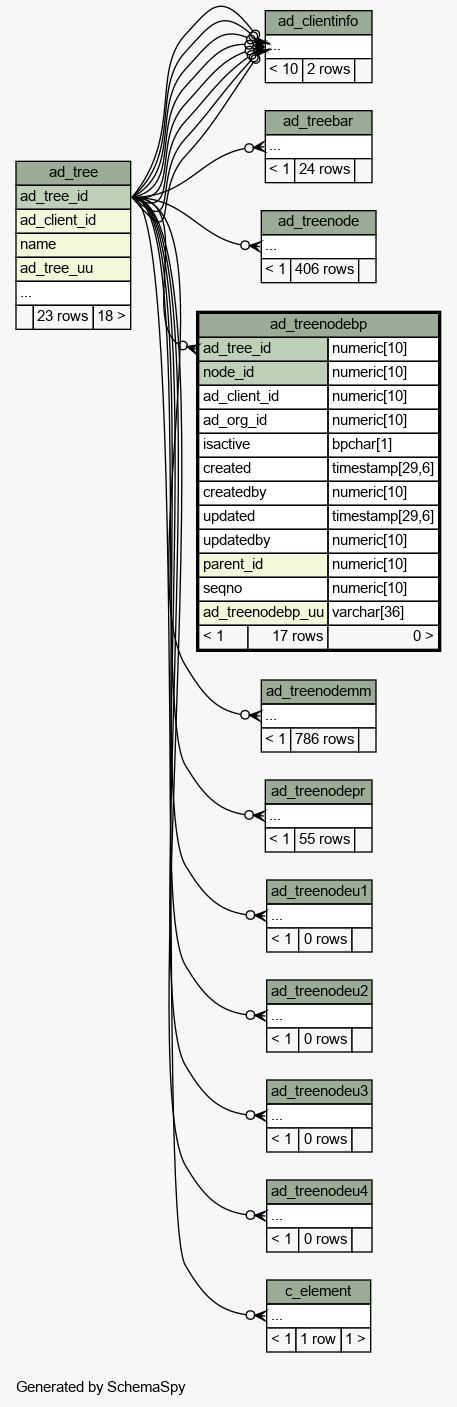

Close relationships  within of separation:
