Table idempiere9.adempiere.s_resourceassignment
Resource Assignment

Generated by
Quality Systems & Solutions
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables
Column Type Size Nulls Auto Default Children Parents Comments
s_resourceassignment_id numeric 10
c_invoiceline.s_resourceassignment_id sresourceassign_cinvoiceline R
c_orderline.s_resourceassignment_id sresourceassign_corderline R
s_timeexpenseline.s_resourceassignment_id sresourceassign_steline R
Resource Assignment
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
s_resource_id numeric 10
s_resource.s_resource_id sresource_sresourceassignment R
name varchar 60 Alphanumeric identifier of the entity
description varchar 255  √  null Optional short description of the record
assigndatefrom timestamp 29,6 Assign resource from
assigndateto timestamp 29,6  √  null Assign resource until
qty numeric 0  √  0 Quantity
isconfirmed bpchar 1 'N'::bpchar Assignment is confirmed
s_resourceassignment_uu varchar 36  √  NULL::character varying S_ResourceAssignment_UU

Table contained 2 rows at 2021-12-25 14:56 +0100

Column(s) Type Sort Constraint Name
s_resourceassignment_id Primary key Asc s_resourceassignment_pkey
s_resourceassignment_uu Must be unique Asc s_resourceassignment_uu_idx

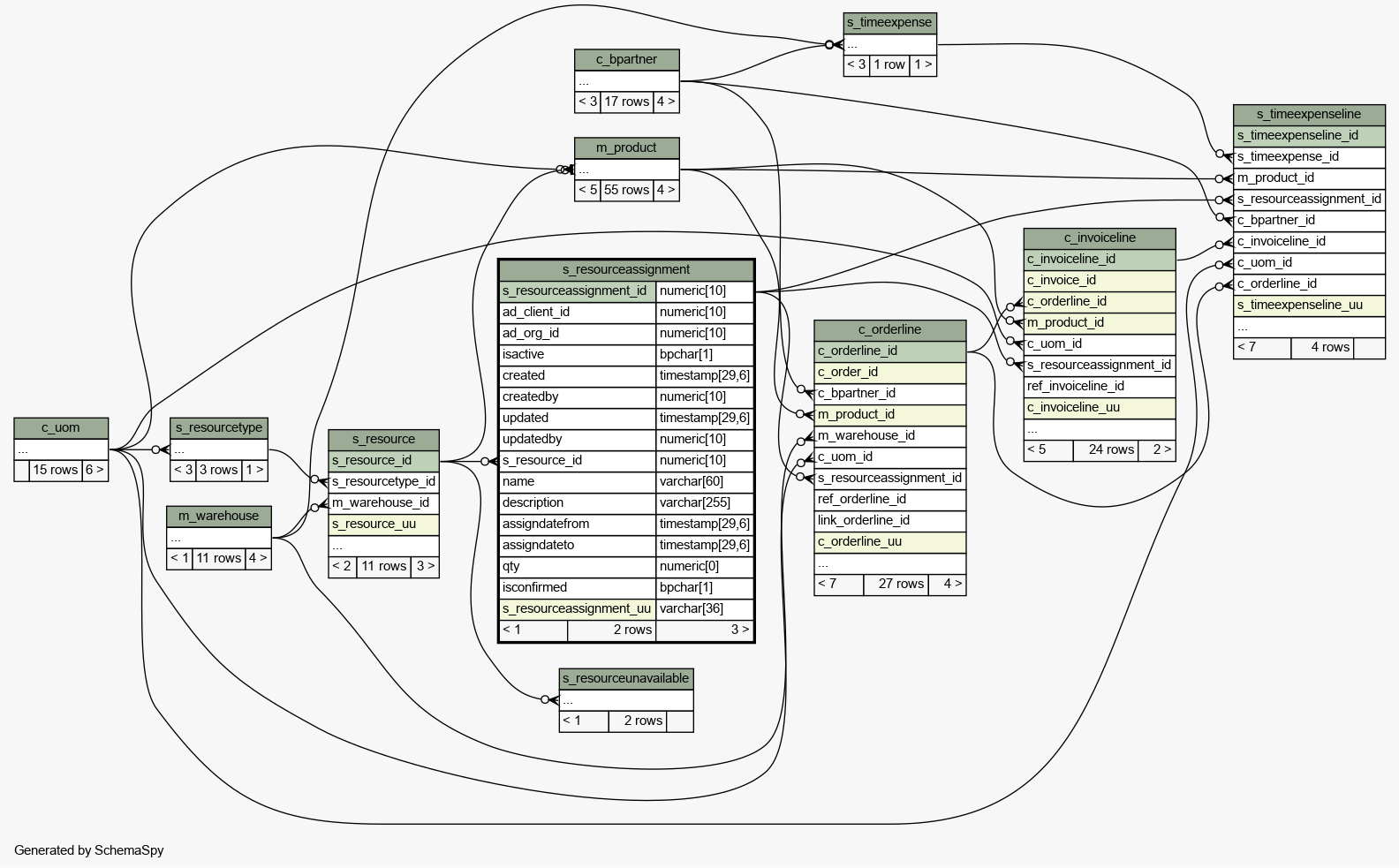

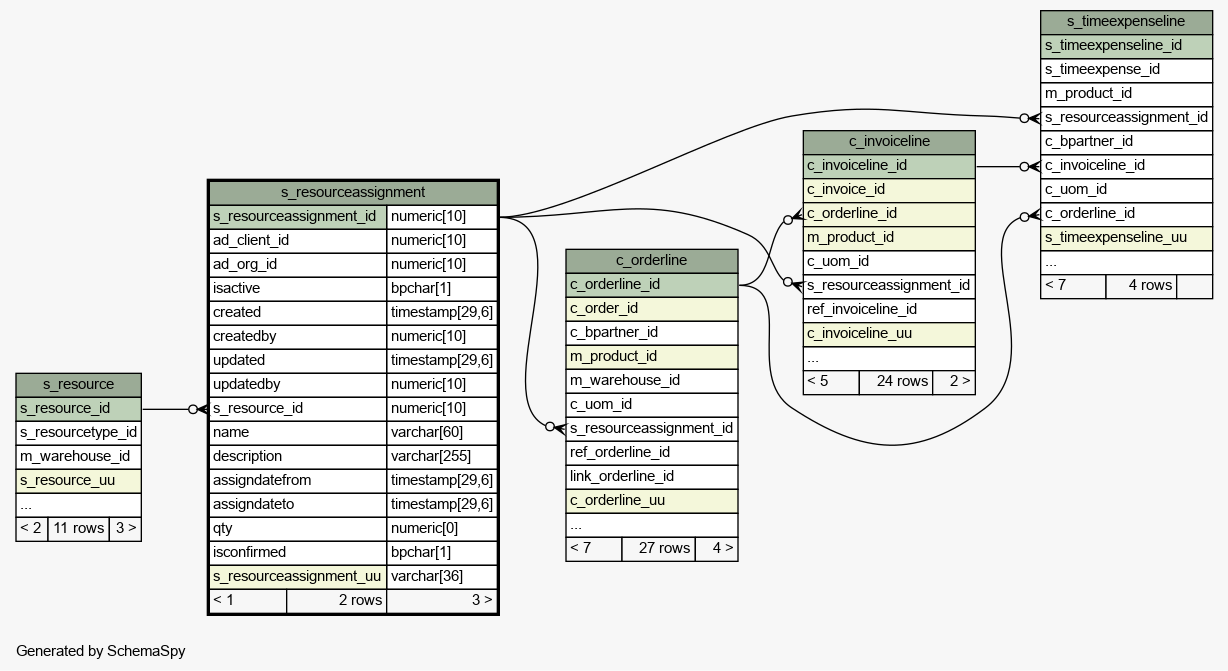

Close relationships  within of separation:
