Table idempiere9.adempiere.ad_org
Organizational entity within client

Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_org_id numeric 10
ad_user.ad_org_id ad_user_org R
ad_user.ad_orgtrx_id adorgtrx_aduser R
c_acctschema.ad_org_id ad_org_c_acctschema R
c_acctschema.ad_orgonly_id adorgonly_cacctschema R
c_nonbusinessday.ad_org_id c_nonbusinesdaysorg R
c_orgassignment.ad_org_id adorg_corgassignment R
m_product.ad_org_id ad_org_mproduct R
Organizational entity within client
ad_client_id numeric 10 Client/Tenant for this installation.
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
value varchar 40 Search key for the record in the format required - must be unique
name varchar 60 Alphanumeric identifier of the entity
description varchar 255  √  null Optional short description of the record
issummary bpchar 1 'N'::bpchar This is a summary entity
ad_replicationstrategy_id numeric 0  √  null Data Replication Strategy
ad_org_uu varchar 36  √  NULL::character varying AD_Org_UU

Table contained 10 rows at 2021-12-25 14:55 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_org_id Primary key Asc ad_org_pkey
ad_org_uu Must be unique Asc ad_org_uu_idx
ad_client_id + value Must be unique Asc/Asc ad_org_value

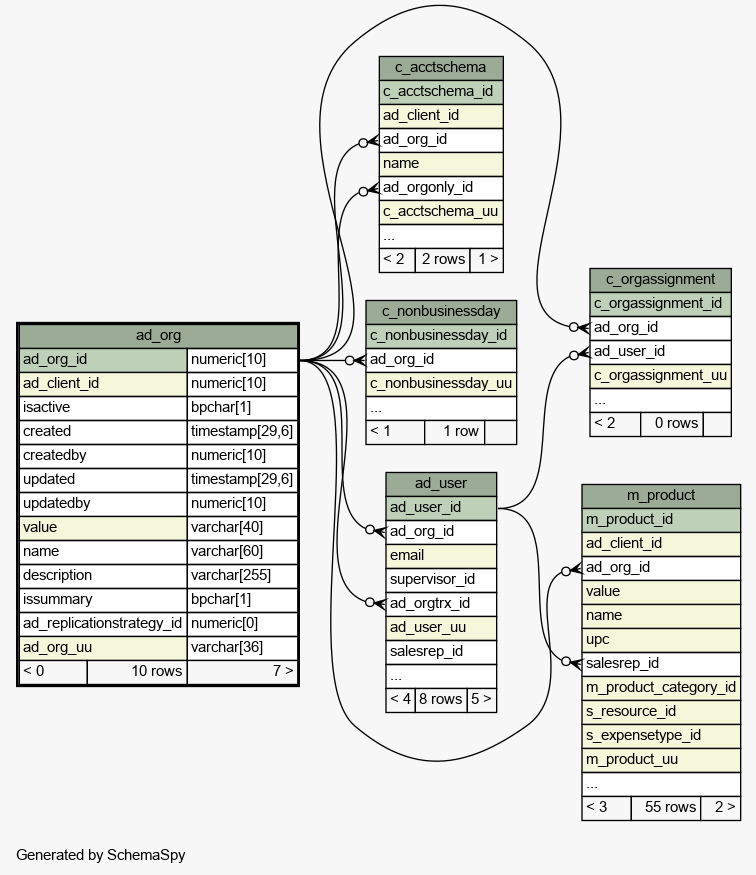

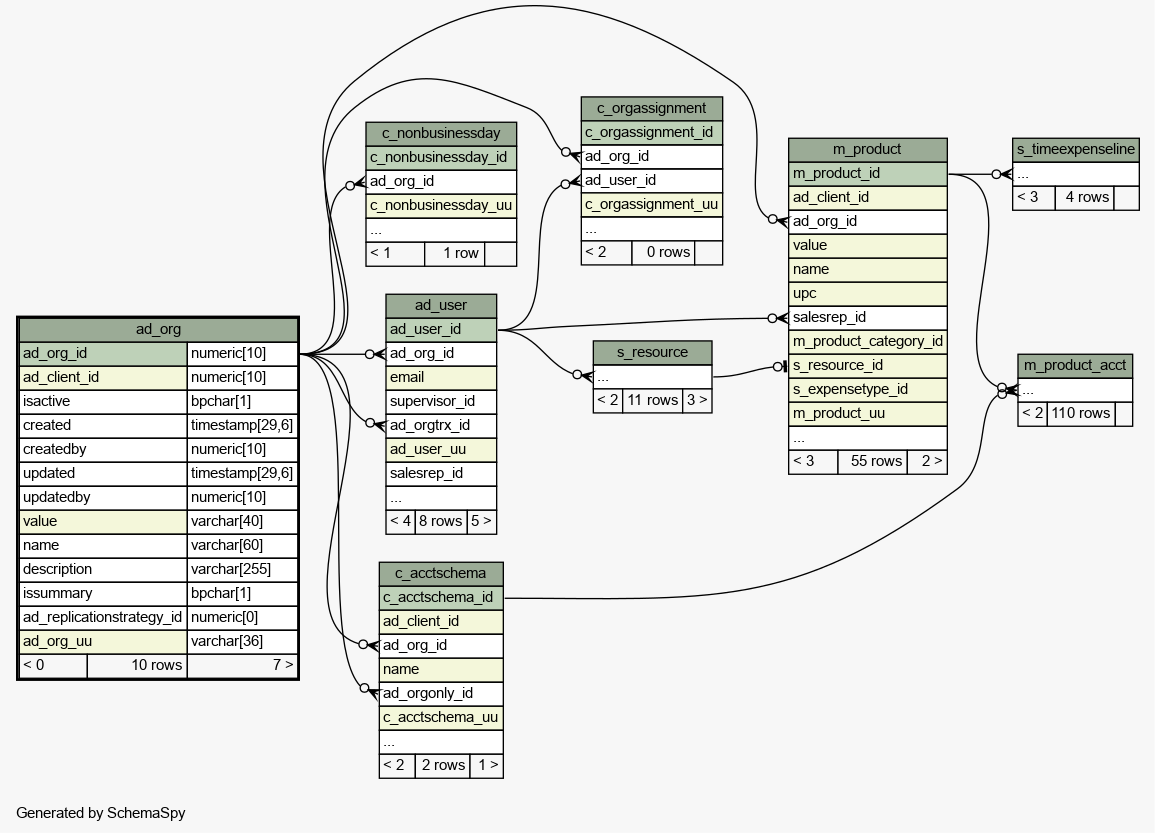

Close relationships  within of separation:
