Table idempiere9.adempiere.m_operationresource
Product Operation Resource

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
m_operationresource_id numeric 10 Product Operation Resource
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
m_productoperation_id numeric 10
m_productoperation.m_productoperation_id mproductop_mopresource C
Product Manufacturing Operation
name varchar 60 Alphanumeric identifier of the entity
description varchar 255  √  null Optional short description of the record
help varchar 2000  √  null Comment or Hint
a_asset_id numeric 10  √  null Asset used internally or by customers
c_job_id numeric 10  √  null Job Position
setuptime numeric 0 0 Setup time before starting Production
unitruntime numeric 0 0 Time to produce one unit
teardowntime numeric 0 0 Time at the end of the operation
m_operationresource_uu varchar 36  √  NULL::character varying M_OperationResource_UU

Table contained 0 rows at 2021-12-25 14:54 +0100

Indexes:
Column(s) Type Sort Constraint Name
m_operationresource_id Primary key Asc m_operationresource_pkey
m_operationresource_uu Must be unique Asc m_operationresource_uu_idx

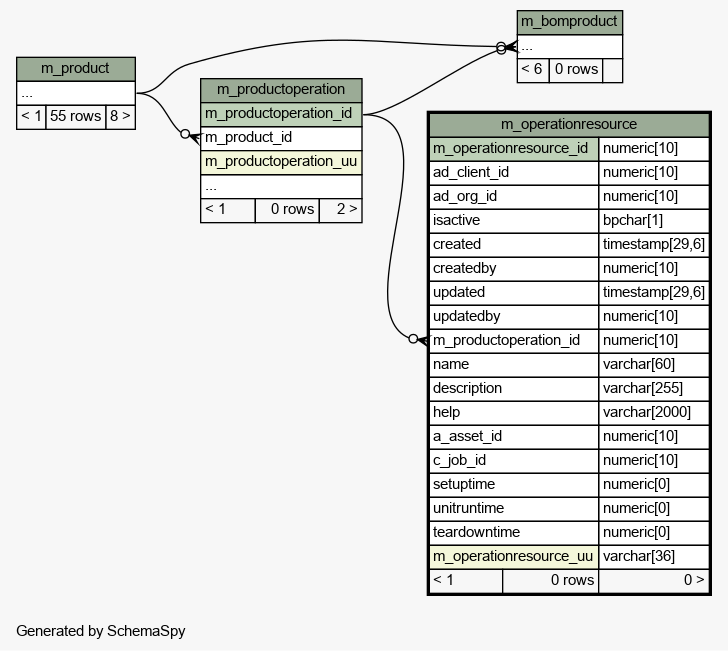

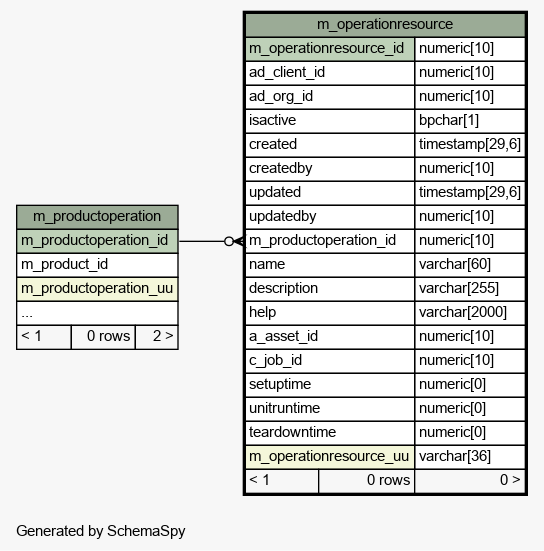

Close relationships  within of separation:
