Table idempiere9.adempiere.c_uom
Unit of Measure

Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
c_uom_id numeric 10
c_uom_conversion.c_uom_id cuom_cuomconversion R
c_uom_conversion.c_uom_to_id c_uomconversionto R
m_product.c_uom_id cuom_mproduct R
m_product_po.c_uom_id c_uom_m_product_po R
Unit of Measure
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
updated timestamp 29,6 now() Date this record was updated
createdby numeric 10 User who created this records
updatedby numeric 10 User who updated this records
x12de355 varchar 4 UOM EDI X12 Code
uomsymbol varchar 10  √  null Symbol for a Unit of Measure
name varchar 60 Alphanumeric identifier of the entity
description varchar 255  √  null Optional short description of the record
stdprecision numeric 10 Rule for rounding calculated amounts
costingprecision numeric 10 Rounding used costing calculations
isdefault bpchar 1 'N'::bpchar Default value
uomtype varchar 2  √  NULL::character varying UOM Type
c_uom_uu varchar 36  √  NULL::character varying C_UOM_UU

Table contained 15 rows at 2021-12-25 14:53 +0100

Indexes:
Column(s) Type Sort Constraint Name
c_uom_id Primary key Asc c_uom_pkey
ad_client_id + name Must be unique Asc/Asc c_uom_name
c_uom_uu Must be unique Asc c_uom_uu_idx
x12de355 Performance Asc c_uom_x12

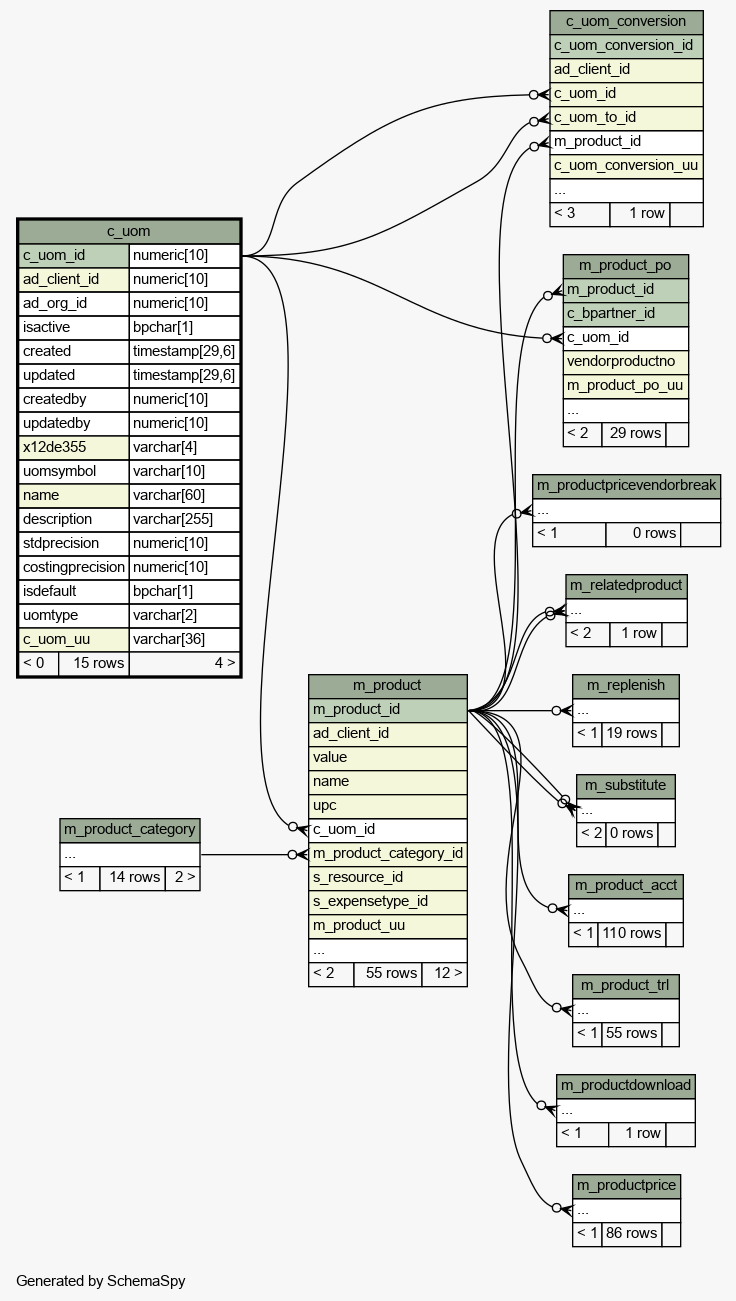

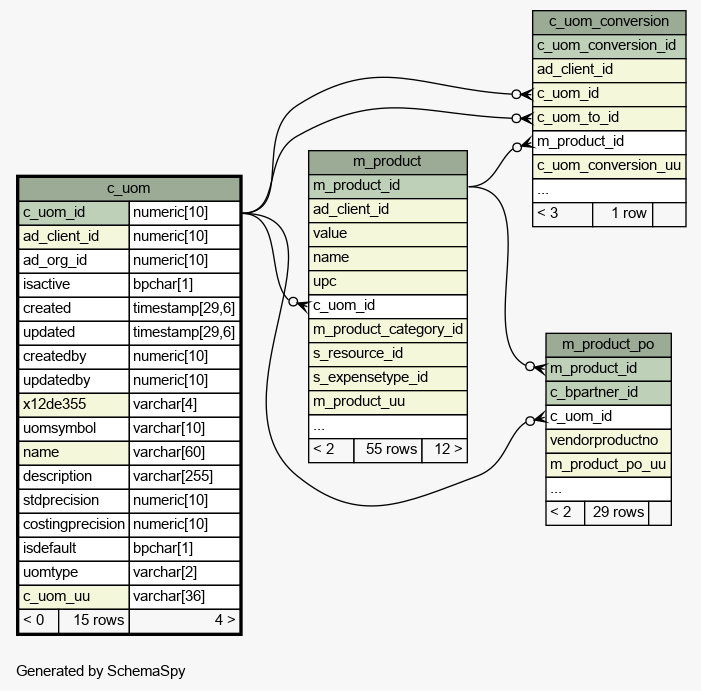

Close relationships  within of separation:
