Table idempiere9.adempiere.m_shippingprocessorcfg
Shipping Processor Configuration

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
created timestamp 29,6 statement_timestamp() Date this record was created
createdby numeric 10 User who created this records
description varchar 255  √  NULL::character varying Optional short description of the record
hostaddress varchar 60 Host Address URL or DNS
hostport numeric 10 Host Communication Port
isactive bpchar 1 'Y'::bpchar The record is active in the system
name varchar 60 Alphanumeric identifier of the entity
proxyaddress varchar 60  √  NULL::character varying Address of your proxy server
proxylogon varchar 60  √  NULL::character varying Logon of your proxy server
proxypassword varchar 60  √  NULL::character varying Password of your proxy server
proxyport numeric 10  √  NULL::numeric Port of your proxy server
servicepath varchar 60  √  NULL::character varying Service Path
shippingprocessorclass varchar 60  √  NULL::character varying Shipping Processor Class
updated timestamp 29,6 statement_timestamp() Date this record was updated
updatedby numeric 10 User who updated this records
m_shippingprocessorcfg_id numeric 10
m_shippercfg.m_shippingprocessorcfg_id mshippingprocessorcfg_mshipper R
m_shippingprocessor.m_shippingprocessorcfg_id mshippingprocessorcfg_mshippin R
Shipping Processor Configuration
m_shippingprocessorcfg_uu varchar 36  √  NULL::character varying M_ShippingProcessorCfg_UU

Table contained 1 rows at 2021-12-25 14:52 +0100

Indexes:
Column(s) Type Sort Constraint Name
m_shippingprocessorcfg_id Primary key Asc x_shippingprocessor_key
m_shippingprocessorcfg_uu Must be unique Asc m_shippingprocessorcfg_uu_idx
ad_client_id + ad_org_id + name Must be unique Asc/Asc/Asc x_shippingproc_unique_columns

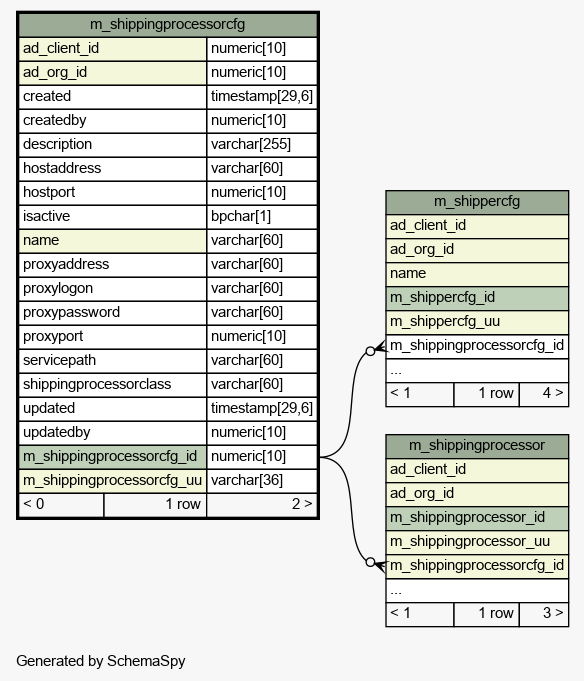

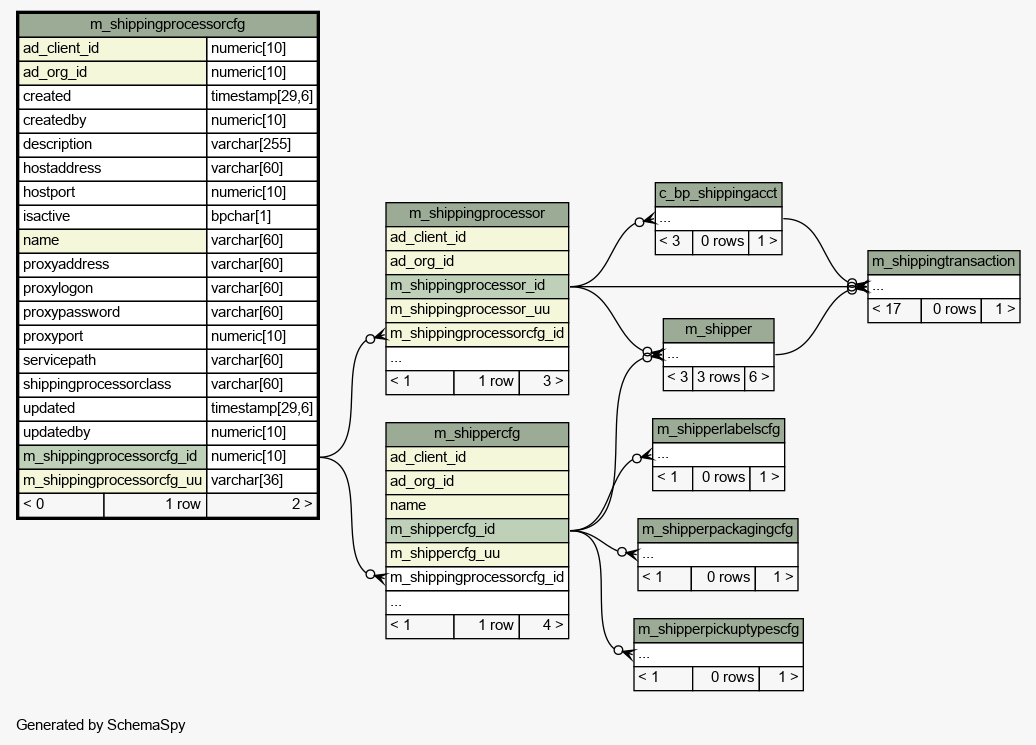

Close relationships  within of separation:
