Table idempiere9.adempiere.qm_specification
Quality Specification

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
qm_specification_id numeric 10
qm_specificationline.qm_specification_id qmspecification_qmspecificatio R
Quality Specification
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 The record is active in the system
created timestamp 29,6 statement_timestamp() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 statement_timestamp() Date this record was updated
updatedby numeric 10 User who updated this records
value varchar 40  √  null Search key for the record in the format required - must be unique
name varchar 60  √  null Alphanumeric identifier of the entity
description varchar 255  √  null Optional short description of the record
m_product_id numeric 10
m_product.m_product_id mproduct_qmspecification R
Product, Service, Item
pp_product_bom_id numeric 10  √  null BOM & Formula
ad_workflow_id numeric 10  √  null Workflow or combination of tasks
m_attributeset_id numeric 10 Product Attribute Set
validfrom timestamp 29,6  √  null Valid from including this date (first day)
validto timestamp 29,6  √  null Valid to including this date (last day)
ad_client_id numeric 10 Client/Tenant for this installation.
qm_specification_uu varchar 36  √  NULL::character varying QM_Specification_UU

Table contained 0 rows at 2021-12-25 14:52 +0100

Indexes:
Column(s) Type Sort Constraint Name
qm_specification_id Primary key Asc qm_specification_key
qm_specification_uu Must be unique Asc qm_specification_uu_idx

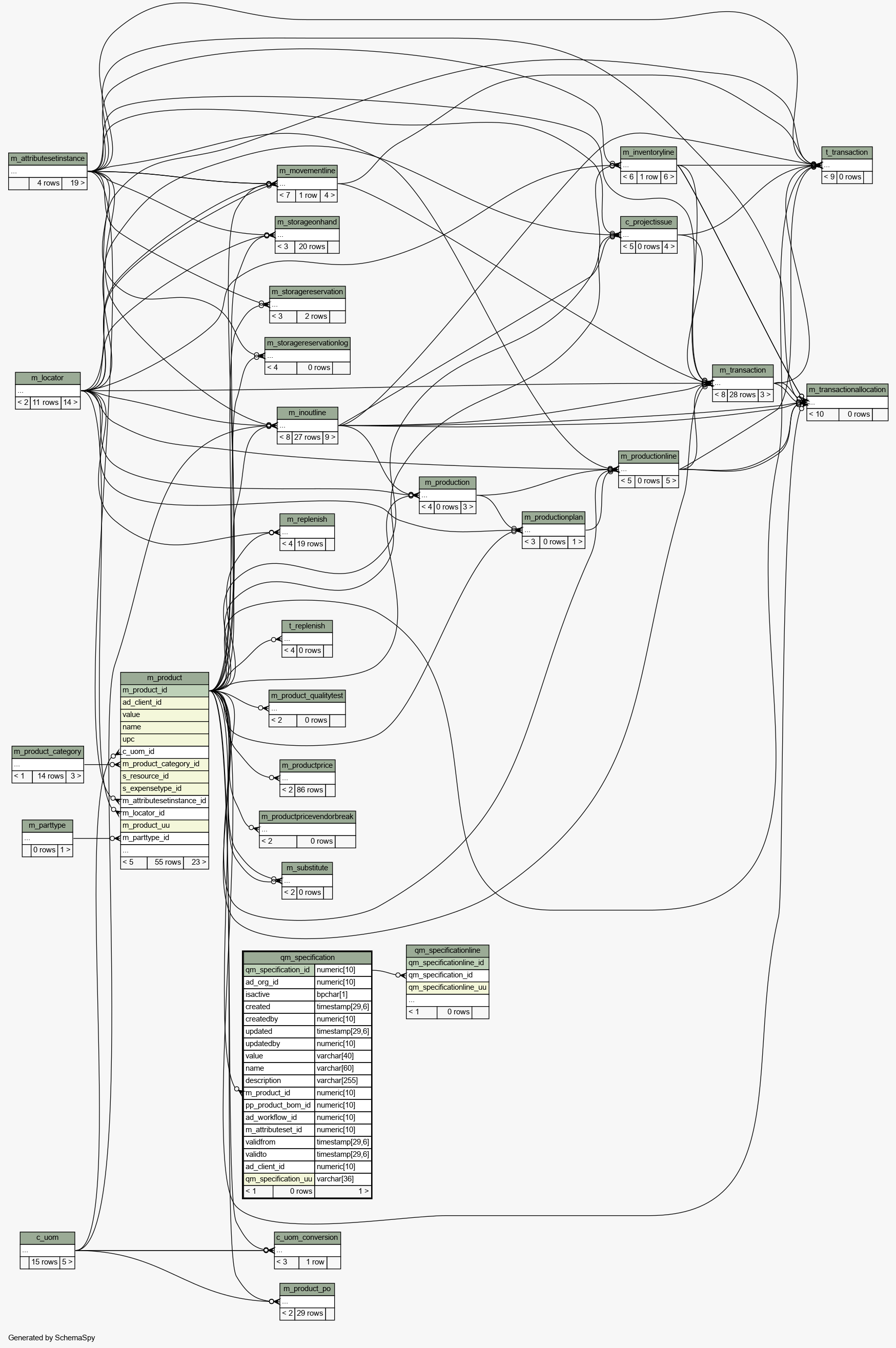

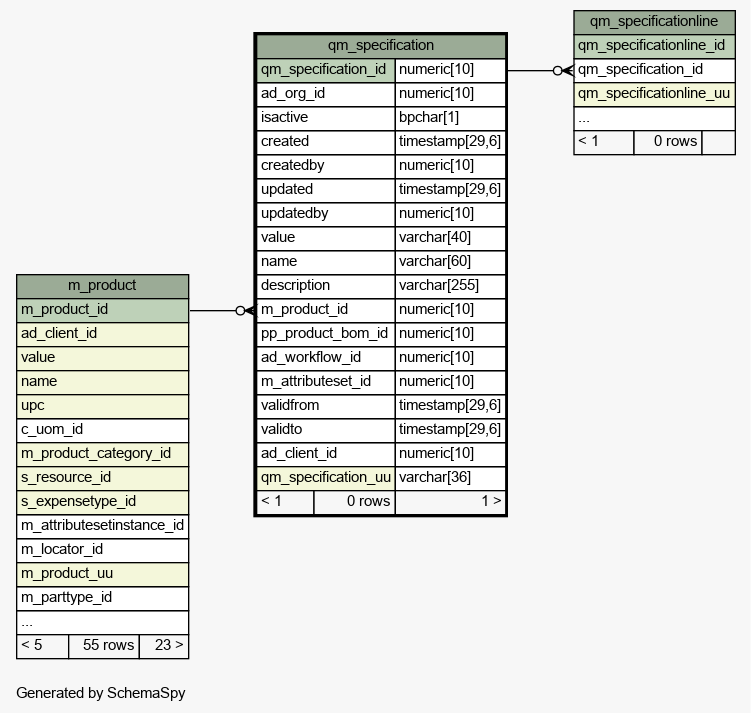

Close relationships  within of separation:
