Table idempiere9.adempiere.ad_replicationtable
Data Replication Strategy Table Info

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_replicationtable_id numeric 10
ad_replication_log.ad_replicationtable_id adreptable_adreplog N
Data Replication Strategy Table Info
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
ad_replicationstrategy_id numeric 10
ad_replicationstrategy.ad_replicationstrategy_id adrepstrategy_adreptable R
Data Replication Strategy
ad_table_id numeric 10
ad_table.ad_table_id adtable_adreplicationtable C
Database Table information
replicationtype bpchar 1 'L'::bpchar Type of Data Replication
entitytype varchar 40 'D'::character varying Dictionary Entity Type; Determines ownership and synchronization
description varchar 255  √  null Optional short description of the record
ad_replicationtable_uu varchar 36  √  NULL::character varying AD_ReplicationTable_UU

Table contained 473 rows at 2021-12-25 14:47 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_replicationtable_id Primary key Asc ad_replicationtable_pkey
ad_replicationtable_uu Must be unique Asc ad_replicationtable_uu_idx

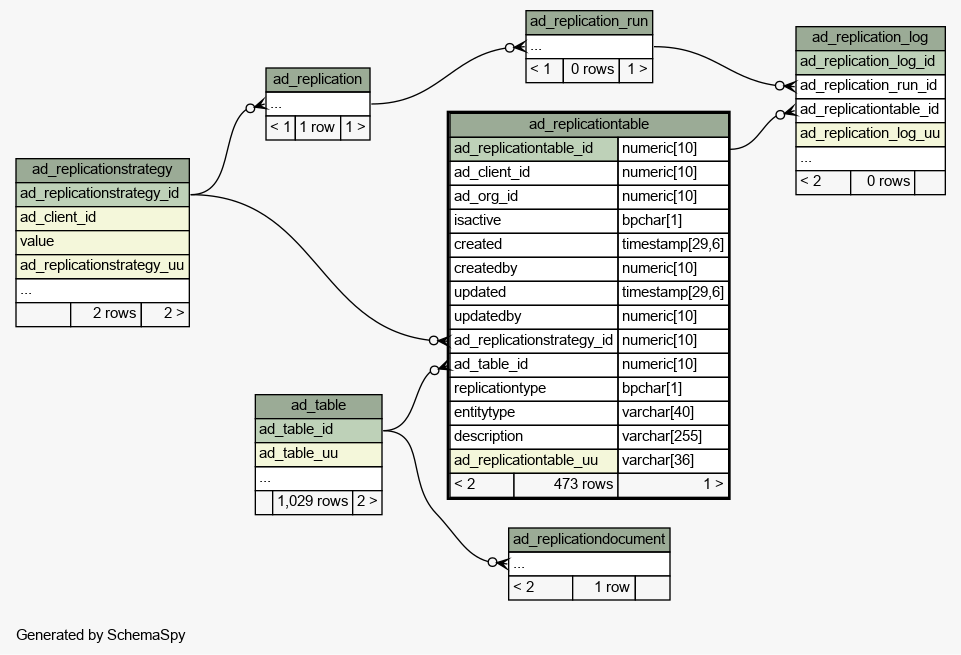

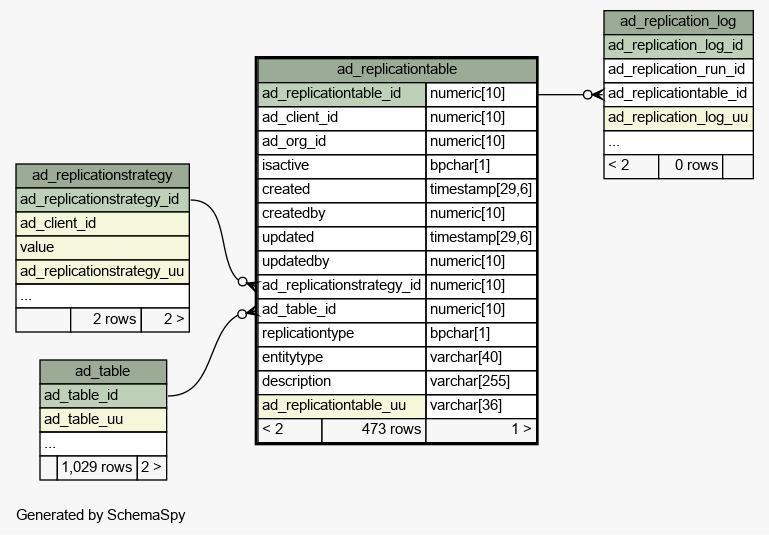

Close relationships  within of separation:
