Table idempiere9.adempiere.ad_replication
Data Replication Target

Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_replication_id numeric 10
ad_replication_run.ad_replication_id adreplication_adreprun C
Data Replication Target
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
name varchar 60 Alphanumeric identifier of the entity
description varchar 255  √  null Optional short description of the record
help varchar 2000  √  null Comment or Hint
hostaddress varchar 60 Host Address URL or DNS
hostport numeric 10 Host Communication Port
ad_replicationstrategy_id numeric 10
ad_replicationstrategy.ad_replicationstrategy_id adreplicationstrategy_adrep R
Data Replication Strategy
isrmioverhttp bpchar 1 'Y'::bpchar Connect to Server via HTTP Tunnel
processing bpchar 1  √  null Process Now
idrangestart numeric 0  √  null Start of the ID Range used
idrangeend numeric 0  √  null End if the ID Range used
remote_client_id numeric 10  √  null Remote Client to be used to replicate / synchronize data with.
remote_org_id numeric 10  √  null Remote Organization to be used to replicate / synchronize data with.
prefix varchar 10  √  null Prefix before the sequence number
suffix varchar 10  √  null Suffix after the number
datelastrun timestamp 29,6  √  null Date the process was last run.
ad_replication_uu varchar 36  √  NULL::character varying AD_Replication_UU

Table contained 1 rows at 2021-12-25 14:47 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_replication_id Primary key Asc ad_replication_pkey
ad_replication_uu Must be unique Asc ad_replication_uu_idx

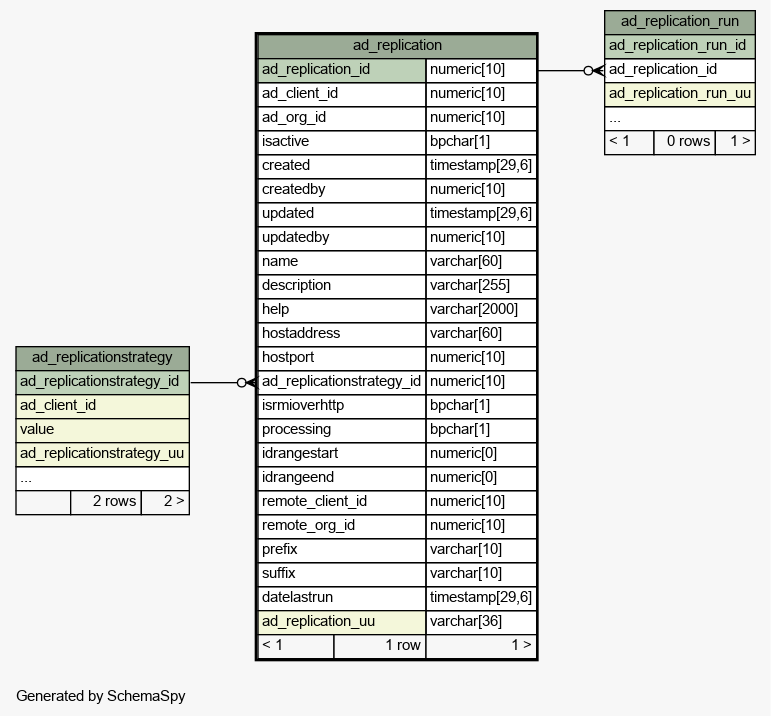

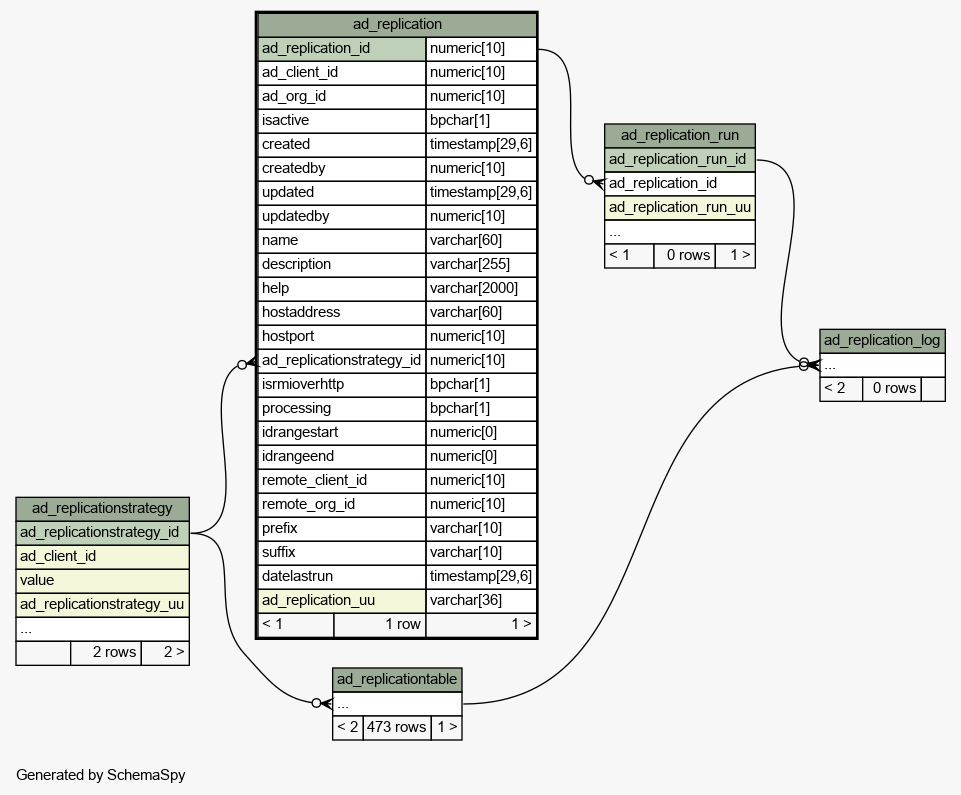

Close relationships  within of separation:
