Table idempiere9.adempiere.ad_userdef_win
User defined Window

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_userdef_win_id numeric 10
ad_userdef_tab.ad_userdef_win_id aduserdefwin_aduserdeftab R
User defined Window
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
ad_role_id numeric 10  √  null
ad_role.ad_role_id adrole_aduserdefwin R
Responsibility Role
ad_user_id numeric 10  √  null User within the system - Internal or Business Partner Contact
ad_window_id numeric 10
ad_window.ad_window_id adwindow_aduserdefwin R
Data entry or display window
name varchar 60  √  null Alphanumeric identifier of the entity
description varchar 255  √  null Optional short description of the record
help varchar 2000  √  null Comment or Hint
ad_language varchar 6  √  null
ad_language.ad_language adlangu_aduserdefwin R
Language for this entity
isdefault bpchar 1 'N'::bpchar Default value
isreadonly bpchar 1 'N'::bpchar Field is read only
isuserupdateable bpchar 1 'Y'::bpchar The field can be updated by the user
ad_userdef_win_uu varchar 36  √  NULL::character varying AD_UserDef_Win_UU

Table contained 0 rows at 2021-12-25 14:45 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_userdef_win_id Primary key Asc ad_userdef_win_pkey
ad_window_id + ad_client_id + ad_org_id Must be unique Asc/Asc/Asc ad_userdef_win_unq
ad_userdef_win_uu Must be unique Asc ad_userdef_win_uu_idx

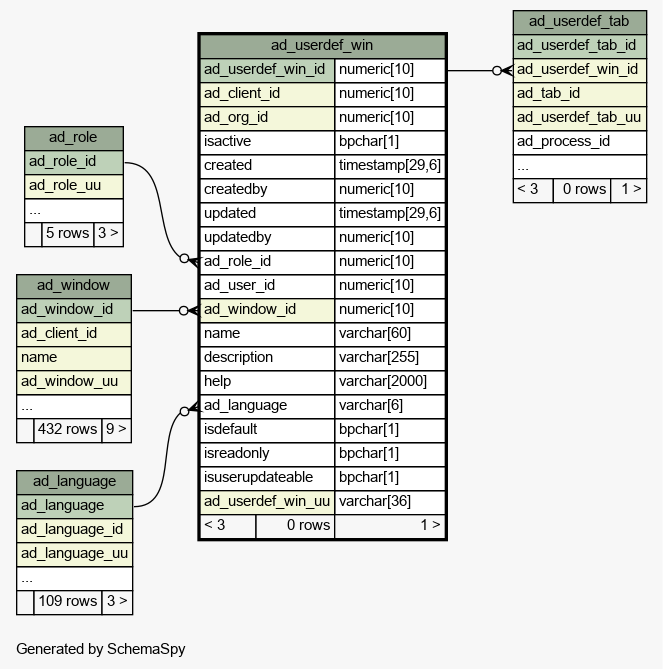

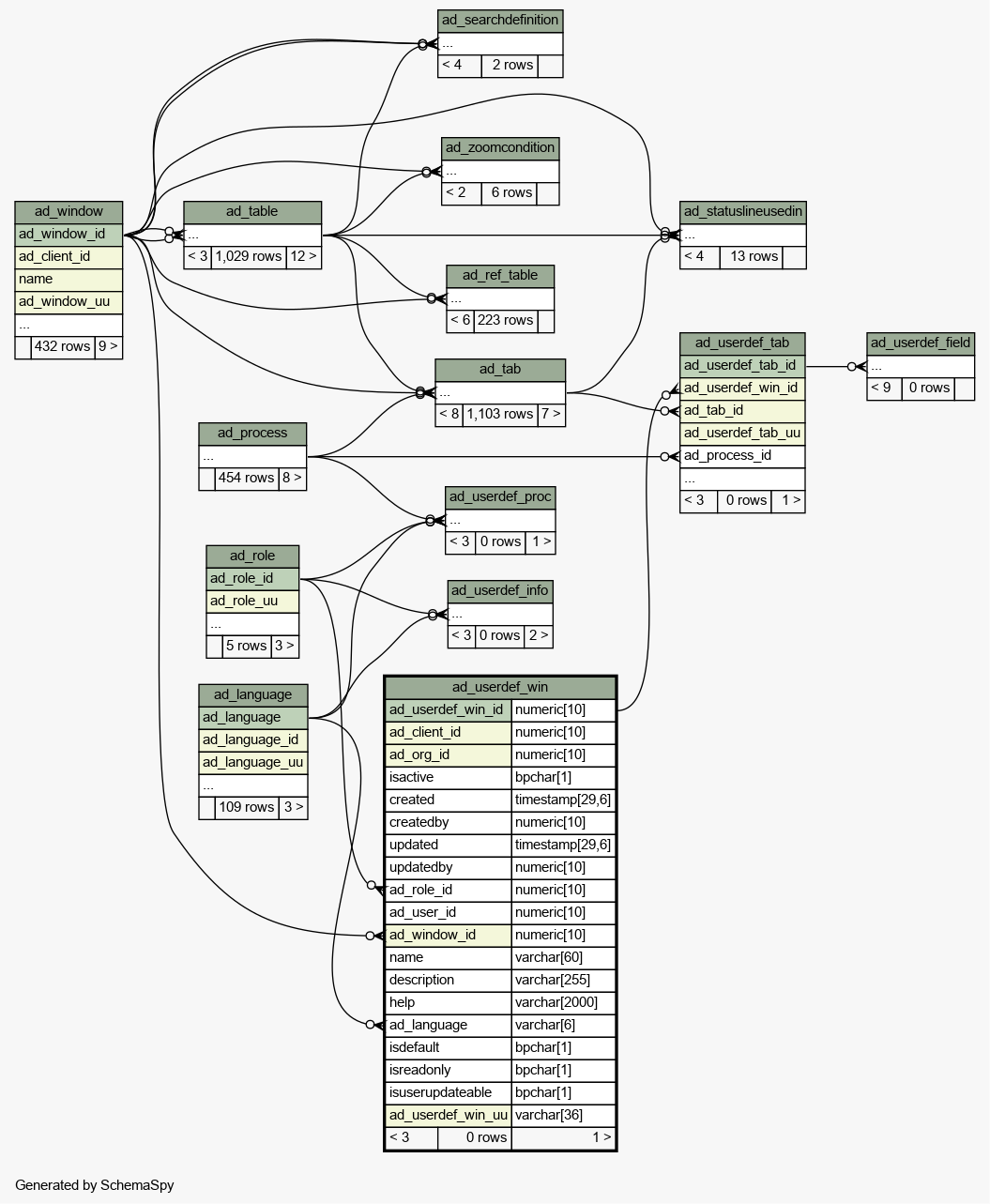

Close relationships  within of separation:
